- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- Video Extender Transmitter

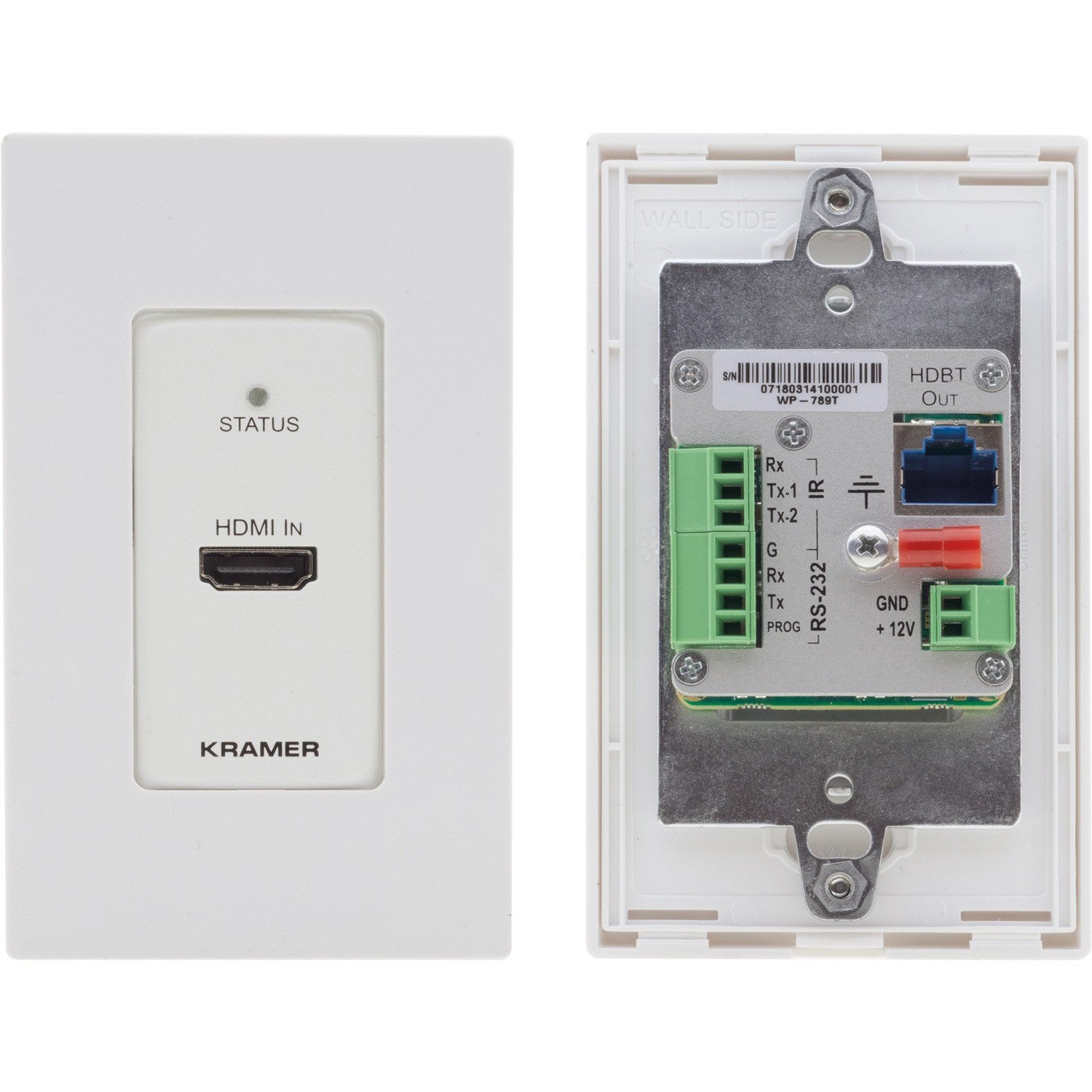

WP-789T is a high-performance, long-reach HDBaseT wall-plate transmitter for 4K@60Hz (4:2:0) HDMI and HDCP 2.2 signals over twisted pair. It converts the HDMI input signal into an HDBaseT signal and transmits it to a compatible receiver. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This wall-plate is powered through PoE (Power over Ethernet) over the twisted pair cable.
FEATURES
High Performance Transmitter - Professional HDBaseT transmitter for providing long-reach signals over twisted pair copper infrastructures. WP-789T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
Reliable PoE (Power over Ethernet) Powering - Auto-senses the extension line PoE status, and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
HDMI Signal Extension - HDCP 1.4 and 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems
Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
Cost-Effective Maintenance - Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting
Easy Installation - Compactly fits into standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Maximum Operating Distance
- 229.66 ft
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 3840 x 2160
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI Inputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Power Description
- Power over Ethernet (PoE)
- Yes
- Physical Characteristics
- Transmitter Height
- 4.50"
- Transmitter Width
- 2.75"
- Transmitter Depth
- 1.22"
- Form Factor
- Wall Mountable
- Transmitter Weight (Approximate)
- 3.53 oz
- Miscellaneous
- Package Contents
- US-D-size Wall-Plate Transmitter With White & Black Decora Design Frame Sets
- 1 x Power Adapter
- 1 x Power Cord
- Installation Accessories
- 2 x US-D Frame Sets And Faceplates
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
