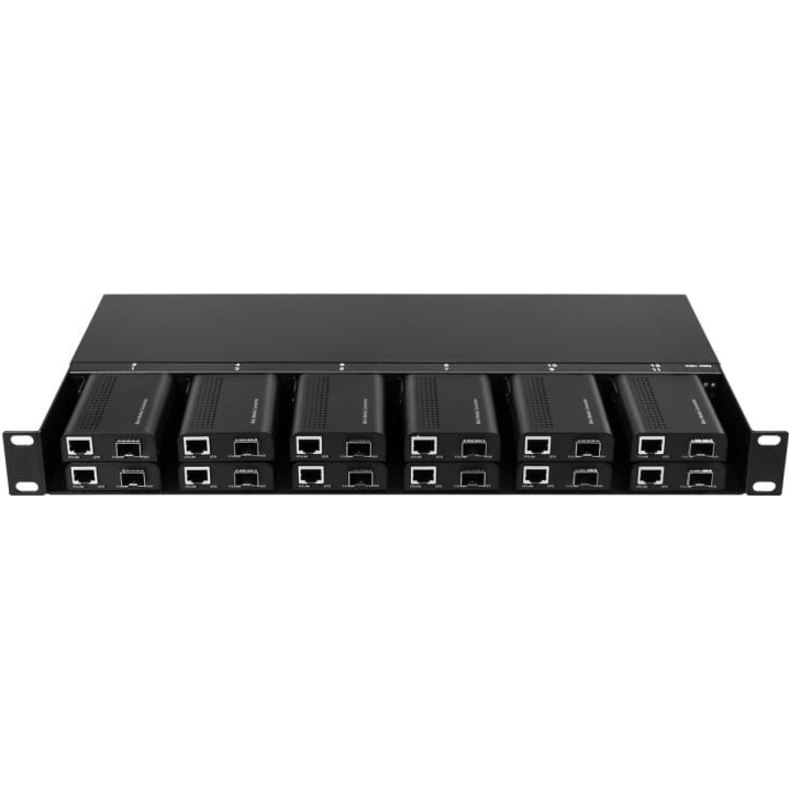

The Axiom 1U Rack Mount 12 Slot Media Converter Chassis is specifically designed to accommodate our MC01, MC03, MC08, & MC10 Series Mini-Media Converter line up. The 1U rack mount system is designed for space saving by providing power with a single, internal, universal power supply that eliminates the need for the multiple power connections which is usually associated associated with multiple converter installations. It provides hot-swap capability so individual units can be replaced as your network needs change.
- Media Converter Capacity: 12-slots in front for silde-in-modules
- LED Indicators: Power, Fan A, Fan B (On: operating; Off: device or fan fail)
- Power: Universal input 100~240V, 50/60Hz, 3.0~1.5A Redundant Power Supply
- Temperature Rating: 0~50 degrees C (operating), -20~70 degrees C (storage)
- Humidity: 0~90% (non-condensing)
- Enclosure: Metal
- Dimensions: 440mm×245mm×45mm
- Weight: 3.2kg
- Compliance: FCC Class A, CE-mark
- General Information
- Manufacturer
- Axiom Memory Solutions
- Manufacturer Website Address
- http://www.axiommemory.com
- Brand Name
- Axiom
- Product Type
- Media Converter Chassis
- Warranty
- Limited Warranty
- 1 Year
- I/O Expansions
- Total Number of Expansion Slots
- 12
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Supply Installed
- Yes
- Number of Power Supplies Installed
- 1
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.8"
- Width
- 17.3"
- Depth
- 9.6"
- Weight (Approximate)
- 7.05 lb
- Miscellaneous
- Compatibility
Axiom Mini-Media Converter series:
- MC01
- MC03
- MC08
- MC10
- Certifications & Standards
- FCC Class A
- CE Mark
